Designed for ankle arthrodesis, the EPIC Extremity Ankle Fusion Plate System provides surgeons with versatile treatment options in a customizable tray. Surgeons can choose to use either cannulated screws, plates or a combination of cannulated screws and plates based on their patient’s specific needs.
EPIC Extremity Ankle Fusion Plate System
Tailored Ankle Fusion Configurations
EPIC Extremity Ankle Fusion System
Tailored Ankle Fusion Configurations
EPIC Extremity Ankle Fusion Plate System
Key Features
Anatomic Fusion Plate Options

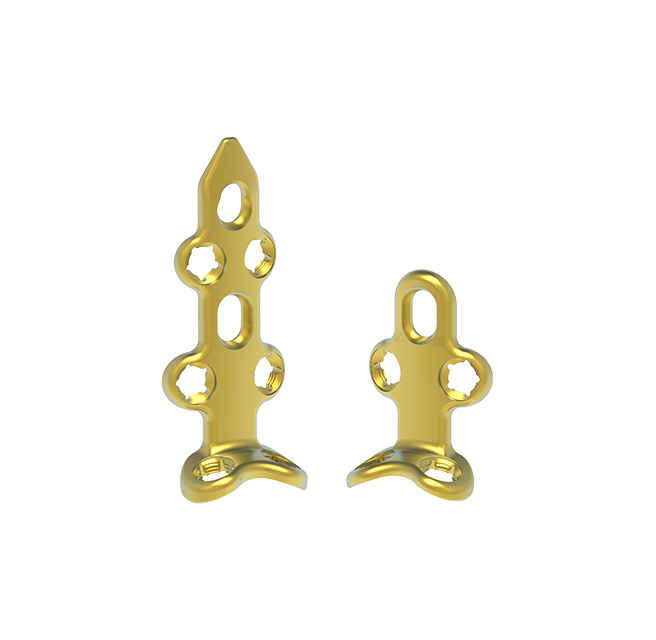

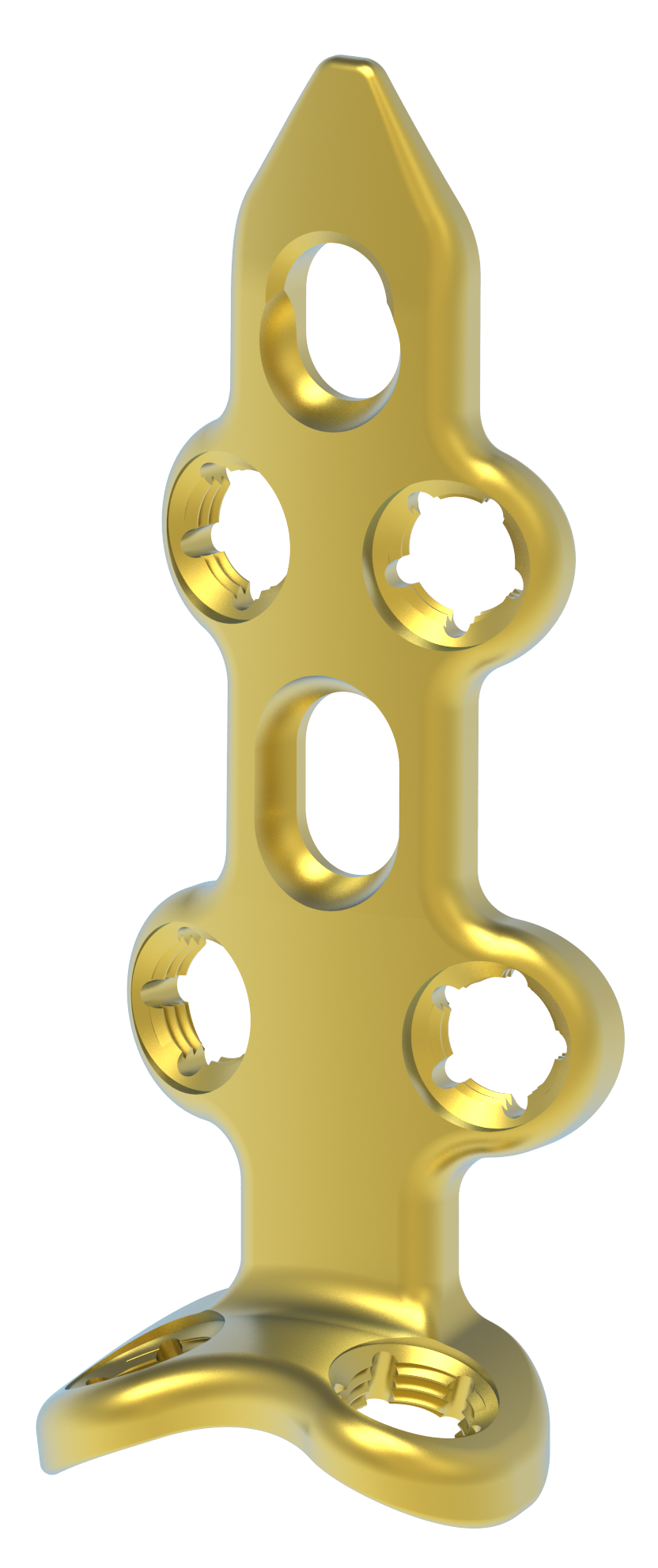

Anterior: standard and small tension band

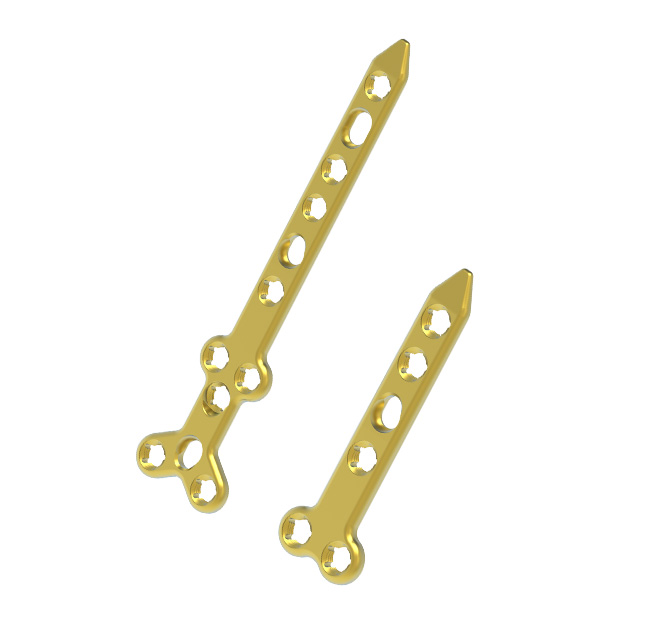

Lateral: TT, TTC, standard and long

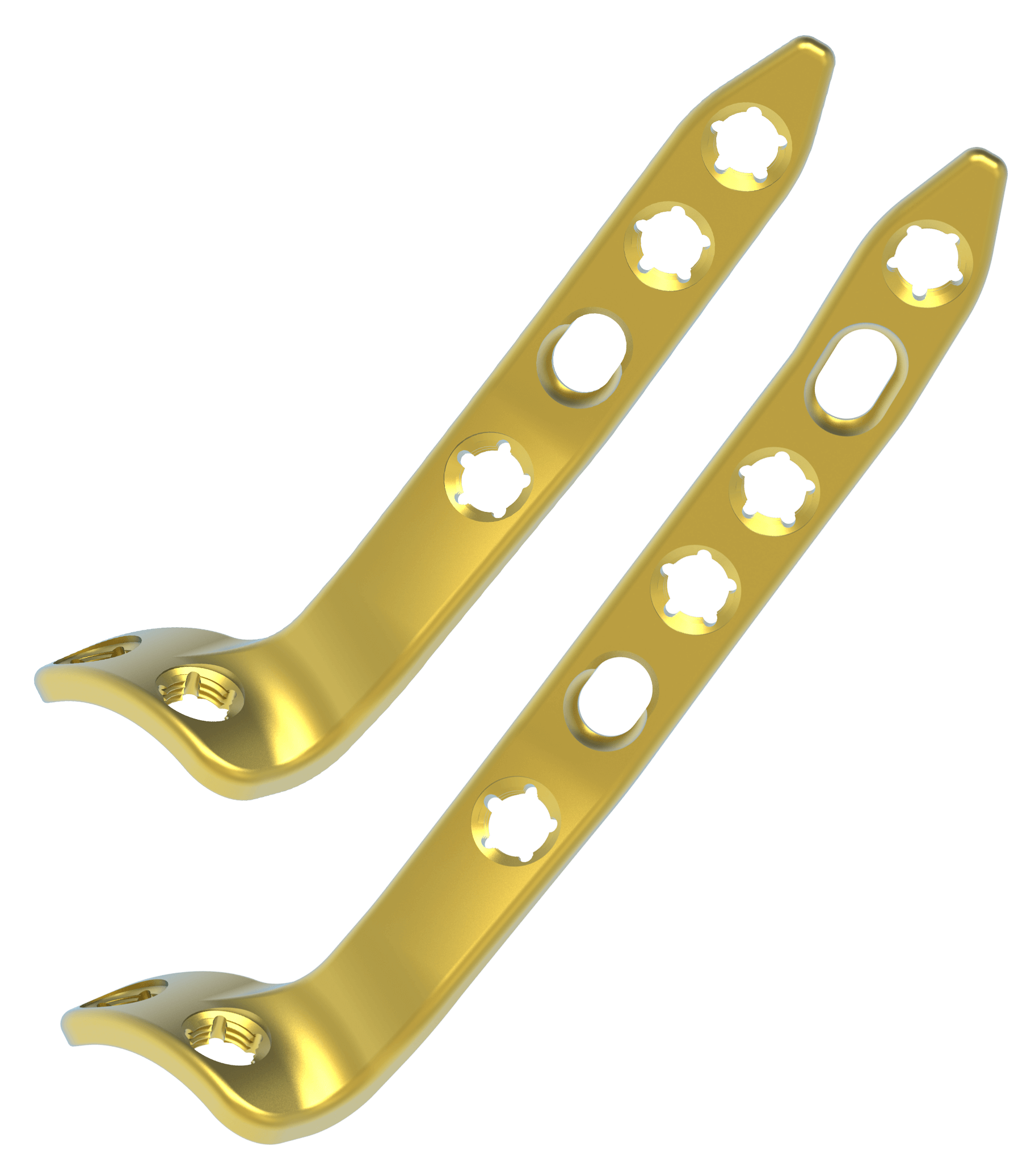

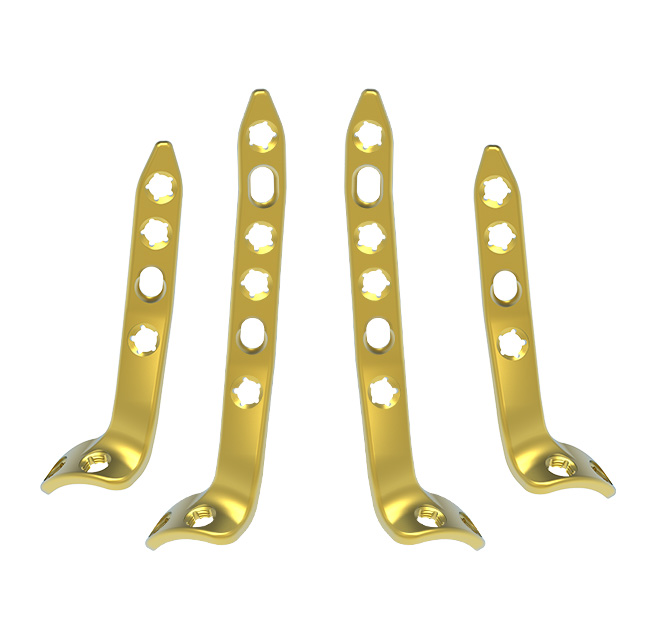

Anterolateral: left, right, standard and long
Posterior: TT and TTC plates
Non-Locking and Variable Locking Screw Options
Headed and headless cannulated screws can also be used with the fusion system.
- 4.5mm variable locking and non-locking screws in lengths 16-40mm in 2mm increments, 45mm and 50mm
- 5.5mm variable locking and non-locking screws in lengths 26-50mm in 2mm increments, 55mm and 60mm
