Equinoxe® Humeral Augmented Tray

Tuberosities Redefined

Equinoxe® Humeral Augmented Tray (HAT)

As the next generation solution for proximal humeral bone loss, the Humeral Augmented Tray (HAT) is anatomically shaped and designed to increase humeral lateralization and deltoid wrapping and improve joint mechanics and stability. This device is used in combination with the Equinoxe Reverse Shoulder System.

Distinct Lateralization Options

To help redefine the tuberosities and improve joint mechanics and stability by providing increased deltoid muscle wrapping and adequate soft tissue tensioning in patients with proximal humeral bone loss, the Humeral Augmented Tray prothesis is available in left- and right-specific with three different lateralization options (standard, lateralized, and Extra Lateralized) and with two offsets (+0 and +5) humeral trays.

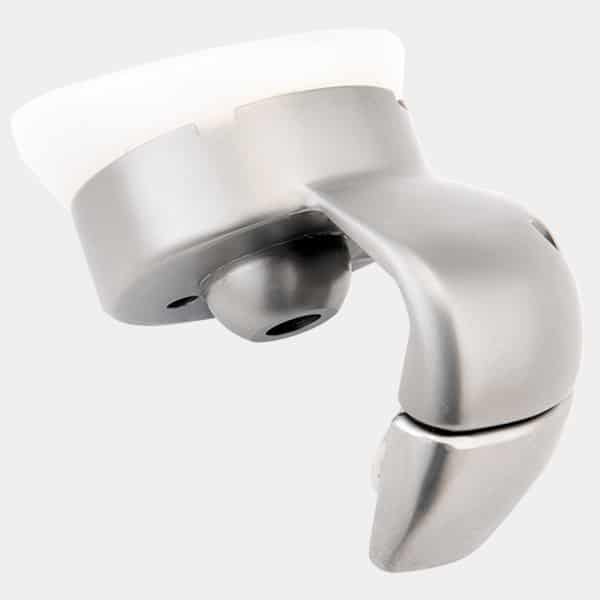

For more severe proximal humeral bone loss than can be addressed with Humeral Augmented Tray only implant, the prothesis allows for an optional 17mm modular extension that can be added to the implant and secured with a locking screw.

Exactech Equinoxe Humeral Augmented Tray

Intraoperative Flexibility

  • Designed for primary or revision procedures where adequate humeral stem fixation can be achieved
  • Used in combination with the Equinoxe Reverse Shoulder System and compatible with the Equinoxe fracture and humeral stems
  • Compatible with standard reverse humeral tray liners
