EPIC Extremity Ankle Fusion Plate System

Tailored Ankle Fusion Configurations

EPIC Extremity Ankle Fusion System

Tailored Ankle Fusion Configurations

EPIC Extremity Ankle Fusion Plate System

Designed for ankle arthrodesis, the EPIC Extremity Ankle Fusion Plate System provides surgeons with versatile treatment options in a customizable tray. Surgeons can choose to use either cannulated screws, plates or a combination of cannulated screws and plates based on their patient’s specific needs.

Key Features

Complete anatomic titanium plate portfolio

Right- and left-specific

Multiple sizes and lengths

Compression slots

Low-profile plates with tapering thickness, max thickness at 3.5mm

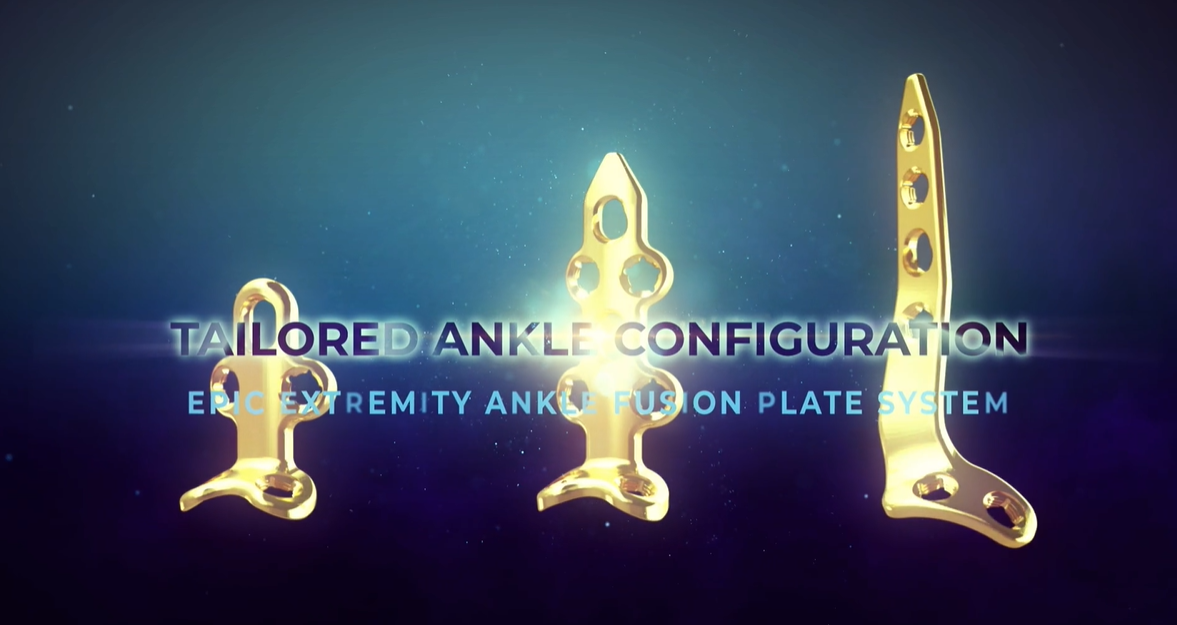

Anatomic Fusion Plate Options

Anterior: standard and small tension band

Lateral: TT, TTC, standard and long

Anterolateral: left, right, standard and long

Posterior: TT and TTC plates

Non-Locking and Variable Locking Screw Options

Headed and headless cannulated screws can also be used with the fusion system.
  • 4.5mm variable locking and non-locking screws in lengths 16-40mm in 2mm increments, 45mm and 50mm
  • 5.5mm variable locking and non-locking screws in lengths 26-50mm in 2mm increments, 55mm and 60mm

EPIC Extremity Ankle Fusion Plate System Resources
